What is Multi-Material 3D Printing?
At its simplest, multi-material 3D printing is any additive-manufacturing workflow that can place more than one material into a single printed object with controlled geometry. Goals commonly include:
• Combining stiff + flexible regions (e.g., a rigid frame with soft grips).
• Achieving multi-color or multi-finish aesthetics without painting.
• Embedding functional elements such as flexible seals, overmolds, or conductive pathways.
• Producing parts that would otherwise require assembly or secondary bonding.
There are two broad approaches: native multi-material machines (which switch or jet materials during build) and hybrid workflows (print parts separately in different materials, then assemble, overmold, or insert secondary components).

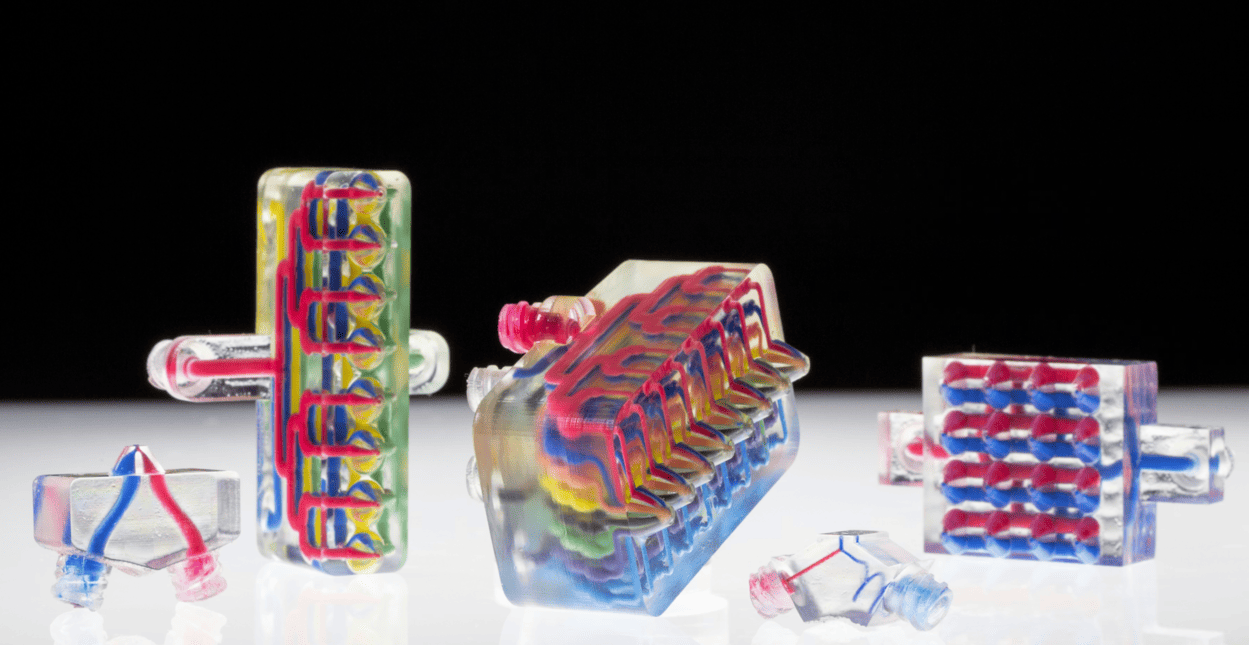

Image Source: Wyss Institute
Technologies for Multi-Material Printing
1. Dual / Multi-Extrusion FDM (FFF)
Fused filament fabrication printers can use two or more extruders to deposit different thermoplastics in a single build. Good for combining rigid plastics (PLA, PETG) with flexible filaments (TPU).
• Pros: accessible and low-cost.
• Cons: alignment, oozing, and adhesion between filaments can be challenging; surface finish is layer-visible.
2. Material Jetting (PolyJet / Multi-Jet)
Material jetting sprays tiny droplets of different photopolymers and cures them with UV light. It can mix materials voxel-by-voxel, producing smooth parts with variable shore hardness and color gradients.
• Pros: high detail, excellent multi-material capability.
• Cons: higher machine and material cost; photopolymer properties differ from engineering thermoplastics.
3. Hybrid & Post-Process Assembly
A common production tactic is to print components separately in optimized materials, then assemble, solvent-bond, or overmold them (for example, insert a printed rigid core into a silicone overmold). The hybrid approach avoids some printing limitations while still achieving multi-material functionality.
Materials You Can Combine
1. PLA or PETG + TPU: rigid body with soft seals or grips. Watch for adhesion—print temperature and interface geometry matter.
2. ABS + TPU: better high-temperature resilience but needs enclosure and careful bed adhesion.
3. Engineering photopolymers + elastomeric resins: enable fine, flexible features next to stiff structural elements.
4. Rigid plastics + conductive inks: for prototypes with embedded traces; often requires integrating connectors or pads.
5. Metal inserts or threaded brass nuts: printed parts can include cavities sized for press-fit inserts or be designed for subsequent ultrasonic or thermal insertion.
Design Considerations for Multi-Material Prints
Interface Geometry
Use interlocking features (fingers, dovetails, micro-textures) to increase mechanical bonding between dissimilar materials. Avoid large unsupported flat joints.
Print Orientation
Choose an orientation that minimizes stress at material boundaries and reduces the need for complex supports in soft regions.
Tolerance & Fit
Different materials shrink and deform differently. Allow clearance for press-fit inserts and separate-surface tolerances for flexible components.
Slicer/Assignment
Not all slicers handle complex material mapping. Use slicers that support multi-extrusion or multi-material mesh assignments, and preview toolpaths carefully.
Support & Post-processing
Some materials require different supports or support removal methods. Plan post-processing (washing, UV cure, annealing) per material.
Testing: Print small test coupons with the same interface geometry you plan to use. Test adhesion, fatigue, and environmental resistance before committing to production parts.
Pros and Cons Cheat Sheet
|
Pros |
Cons |
|
Single-run parts with combined functionalities (saves assembly time). |
Higher machine and material cost for true multi-material systems. |
|
Better aesthetics, multiple colors and textures without painting. |
Interface weakness if materials aren’t compatible. |
|
Functional integration, seals, living hinges, embedded flexible zones. |
Increased design complexity and longer setup (slicer/material mapping). |
|
Rapid prototyping of complex multi-material concepts. |
Limited materials available for some multi-material platforms (e.g., photopolymers vs engineering thermoplastics). |
FAQs
Q: Can I print rigid and soft materials together?
A: Yes. Many FDM printers with a flexible filament and a rigid filament can. Success depends on adhesion, print temperatures, and design for mechanical interlocks.
Q: Is multi-material printing more expensive?
A: Native multi-material machines (like material jetting systems) and multiple filament/resin supplies do add cost. That said, savings from reduced assembly and faster functional prototyping can offset equipment/material expenses.
Q: Which printers are best for multi-material work?
A: It depends on needs: hobbyist dual-extrusion FDMs suit basic rigid+flex work; material jetting systems excel for high-detail, multi-shore prototypes; hybrid workflows are often best for production intent.
Q: How do I ensure good bonding between materials?
A: Use compatible material pairings, design interlocking geometries, optimize print temperature and speeds, and validate with test prints. Surface treatments or primers can help in hybrid assembly scenarios.
Q: Can multi-material printing include metals?
A: Directly mixing metals and polymers in one pass is limited. Metal 3D printing (SLM/DMLS) is typically single-material; hybrid approaches that print plastic parts with cavities sized for metal inserts or using metal overmolding are more common.
