The Reality of 3D Printing Consistency: Same File, Different Batch

When customers reorder a part, one of the most common questions is simple: why does the new batch look slightly different from the previous one, even when the file is exactly the same? It is a fair question, especially when the goal is to reproduce a part as closely as possible. In traditional manufacturing, people often expect repeat orders to look nearly identical. In 3D printing, however, the reality is a little different.

3D printing is a highly flexible manufacturing method, but it is not the same as mold-based production. The final result depends on more than just the CAD file. It also depends on the machine, the material batch, the build setup, the process parameters, and even the post-processing steps. That is why the same file can still produce a slightly different outcome from one order to the next.

This does not mean 3D printing is unreliable. It means 3D printing is a process-driven technology, and like any production process, it has natural variation. The key is to understand where that variation comes from and how to manage expectations properly.

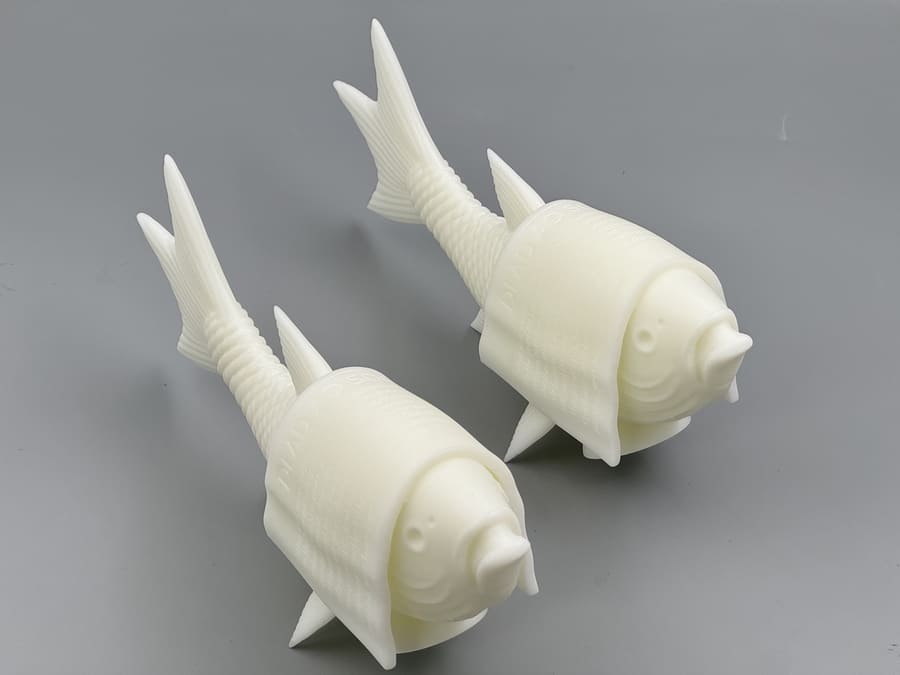

Image Copyright © 3DSPRO. All rights reserved.

Same File Does Not Mean the Same Production Conditions

A CAD file is only one part of the full production picture. It defines the shape of the part, but it does not control every detail of how that part will be made.

Two orders with the same file may still be produced under different conditions. For example, the part may be printed on a different machine, using a different material batch, or at a different point in time when machine calibration or workshop conditions have changed slightly. Even if the production team follows the same workflow, the environment is never exactly identical from one day to the next.

There is also the question of the build arrangement. In many cases, parts are nested together with other parts in the same build. Their orientation, spacing, and position on the build platform may change depending on production needs. These small setup differences can affect surface appearance, support marks, dimensional behavior, or finishing results.

In other words, the file remains the same, but the production conditions do not always remain the same. That is one of the biggest reasons repeat orders can look different.

3D Printing Naturally Has Variation

To understand batch variation, it helps to understand the nature of 3D printing itself.

Unlike injection molding, casting, or stamping, 3D printing builds a part layer by layer. Each layer is created through a controlled process, but each layer is still subject to tiny variations in temperature, exposure, material flow, curing, sintering, or fusion, depending on the printing technology being used. Those small differences may be invisible in isolation, but they can add up across the full build.

This is why 3D printing is often described as a process with controlled repeatability rather than absolute duplication. The goal is not to produce a perfectly identical copy every time, but to keep the part within a consistent quality range.

Different printing technologies also have different sources of variation. For example, powder-based processes may react differently to powder condition or packing density. Resin-based processes may be influenced by exposure settings, resin age, or post-curing. FDM parts may vary with nozzle condition, temperature stability, or material feed consistency. Every technology has its own strengths, but none of them eliminate variation completely.

It is simply the nature of additive manufacturing. Each part is built as an individual object, not pressed from a single mold. That makes 3D printing highly adaptable, but it also means absolute sameness is difficult to guarantee.

Common Factors That Affect Batch-to-Batch Consistency

Several practical factors can influence how one batch compares with another. Understanding them helps explain why repeat orders may not look identical.

Machine Differences

Even machines of the same model can perform slightly differently over time. Wear, maintenance history, calibration state, and machine load can all affect the final result. A machine that was producing very stable parts last month may perform a little differently now if it has been used heavily or adjusted for another job.

Material Batch Variation

Raw materials are never perfectly identical from batch to batch. The differences may be small, but they still matter. A new material batch may have subtle changes in color, viscosity, shrinkage, flow behavior, or particle size. These changes can affect the appearance and sometimes the mechanical properties of the final part.

Build Orientation and Nesting

The way a part is positioned on the build platform can affect its surface finish, support contact points, accuracy, and even strength in certain directions. If a reprint is nested differently from the first order, the result may look different even though the geometry has not changed.

Post-processing Variation

A large part of the final result comes after printing. Cleaning, support removal, sanding, polishing, dyeing, painting, coating, heat treatment, and curing can all introduce small differences. Even when the printed part is identical, the final appearance can shift depending on how the post-processing is carried out.

Environmental and Operational Factors

Temperature, humidity, workshop conditions, operator handling, and production scheduling can all have a small effect on output. These factors usually do not cause dramatic changes, but they can contribute to batch-to-batch variation, especially when a customer is comparing two orders side by side.

What Customers Should Expect

For customers, the most important thing is to set realistic expectations.

If a part is reordered, it is reasonable to expect the same geometry, function, and general quality standard. It is also reasonable to expect the production team to work carefully to keep the second batch as close as possible to the first. But it is not always realistic to expect an exact visual twin of the previous order.

Small differences in surface texture, color tone, gloss, support marks, or dimensional behavior can happen. In many cases, these differences are minor and do not affect the part’s function. For functional components, what matters most is whether the part fits properly, performs its job, and stays within tolerance. For appearance parts, consistency in finishing becomes more important, but even then, slight variation may still appear.

It is especially true when a project involves multiple orders over time. A part printed six months later may not match the earlier batch perfectly, even if the file is unchanged. Material lots may be different, machines may be different, and the post-processing workflow may have evolved.

That is why communication is so important. If you are ordering a replacement part, a matching set, or a part that must closely match a previous sample, it helps to share reference photos, previous order details, material requirements, and finishing expectations. The more information available, the easier it is to control the final result.

3D printing can be highly consistent, but consistency should be understood as stable quality within an acceptable range, not absolute duplication.

How 3DSPRO Improves Consistency in Production

At 3DSPRO, consistency is managed through process control, experience, and communication.

The first step is careful file review. Before production begins, the file is checked to make sure the geometry is suitable for the selected process and that any risk factors are identified early. If the part is especially sensitive to orientation, wall thickness, or finishing, those details are considered before printing starts.

Next comes production planning. Matching the right technology, material, and machine to the job helps reduce unnecessary variation. Repeat orders are handled with attention to previous production records whenever possible, so the team can keep important details aligned across batches.

Material control also plays an important role. Using well-managed material batches and consistent storage and handling methods helps reduce one of the most common sources of variation. In the same way, machine maintenance and calibration help keep equipment performing steadily over time.

Inspection is another important part of the workflow. Parts are checked during and after production to catch issues early and keep the output within quality expectations. When finishing is involved, the post-processing steps are handled with care so the final part stays as close as possible to the required standard.

Just as important is customer communication. If a reprint may differ slightly because of process changes, material updates, or finishing requirements, the customer is informed early. That helps avoid confusion and ensures that the final result matches the real needs of the project.

Our goal is to deliver reliable, repeatable quality with transparent expectations. That is the best way to build trust in repeat production.
