Carbon Steel Sheet Metal Fabrication

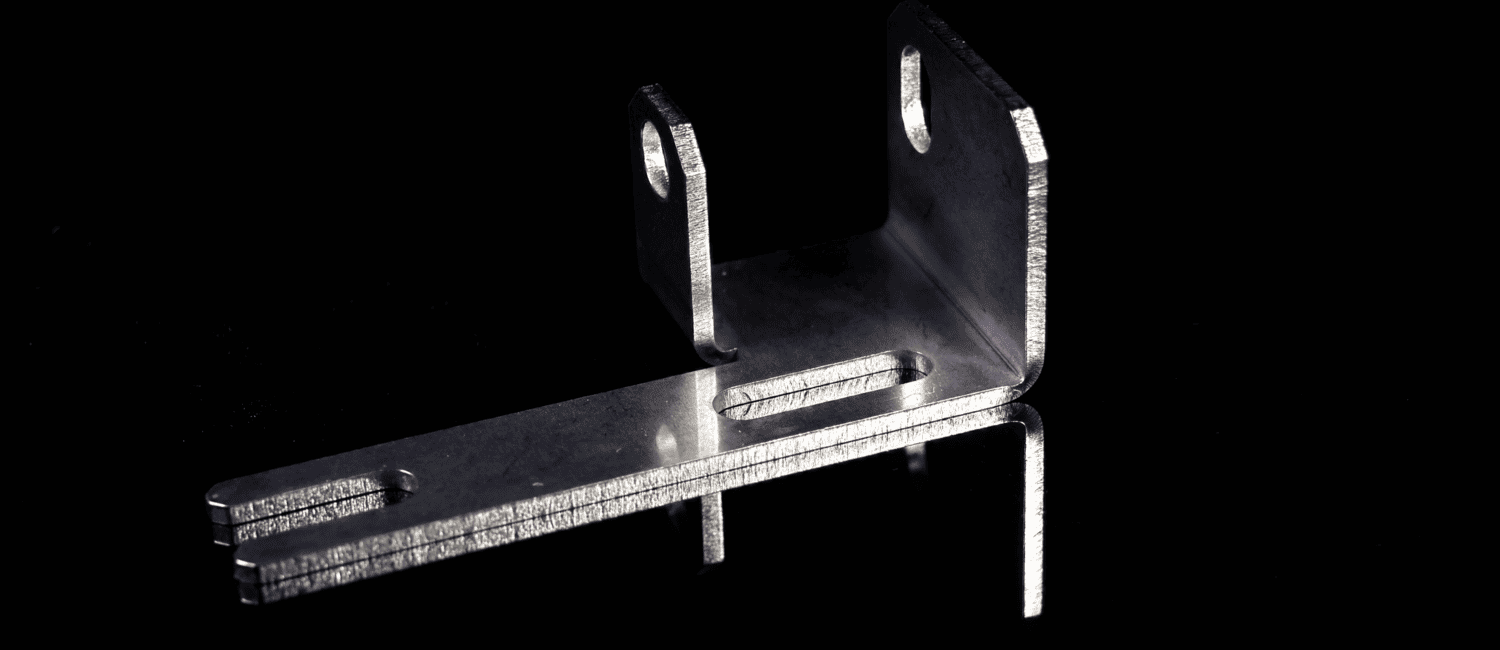

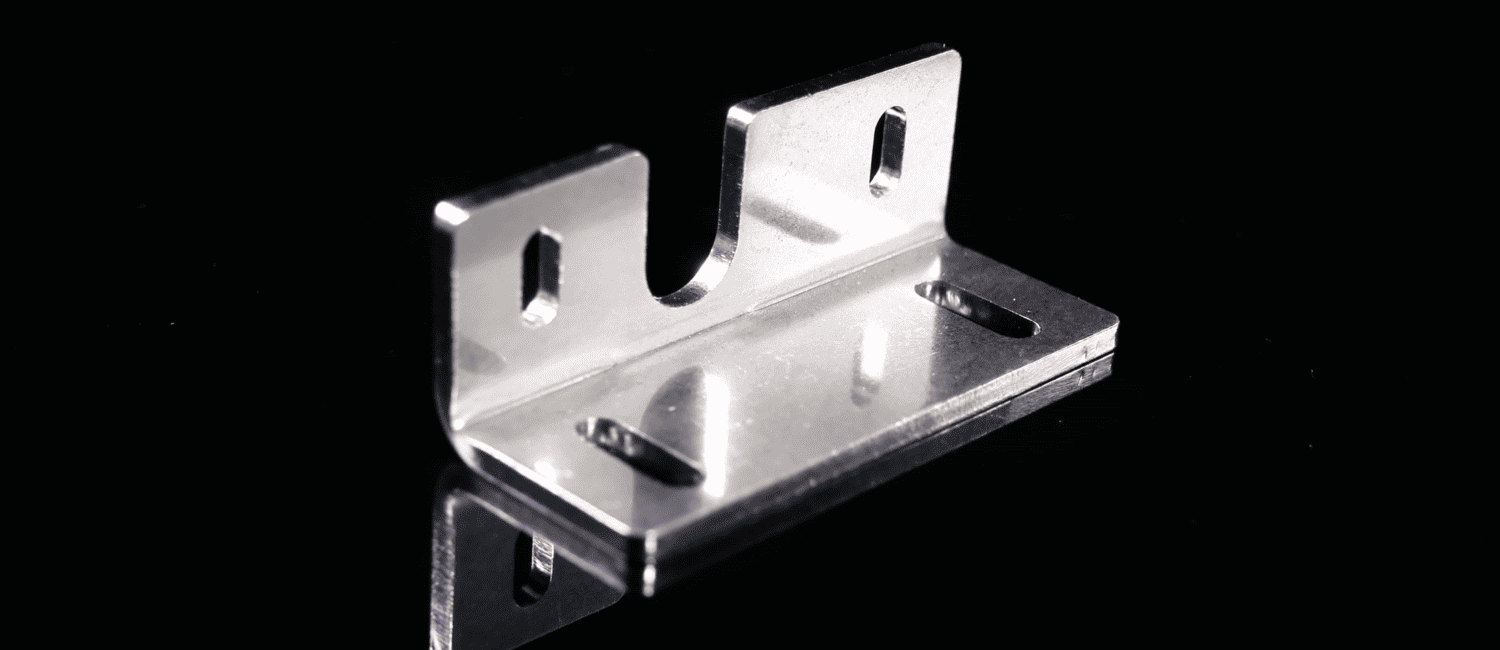

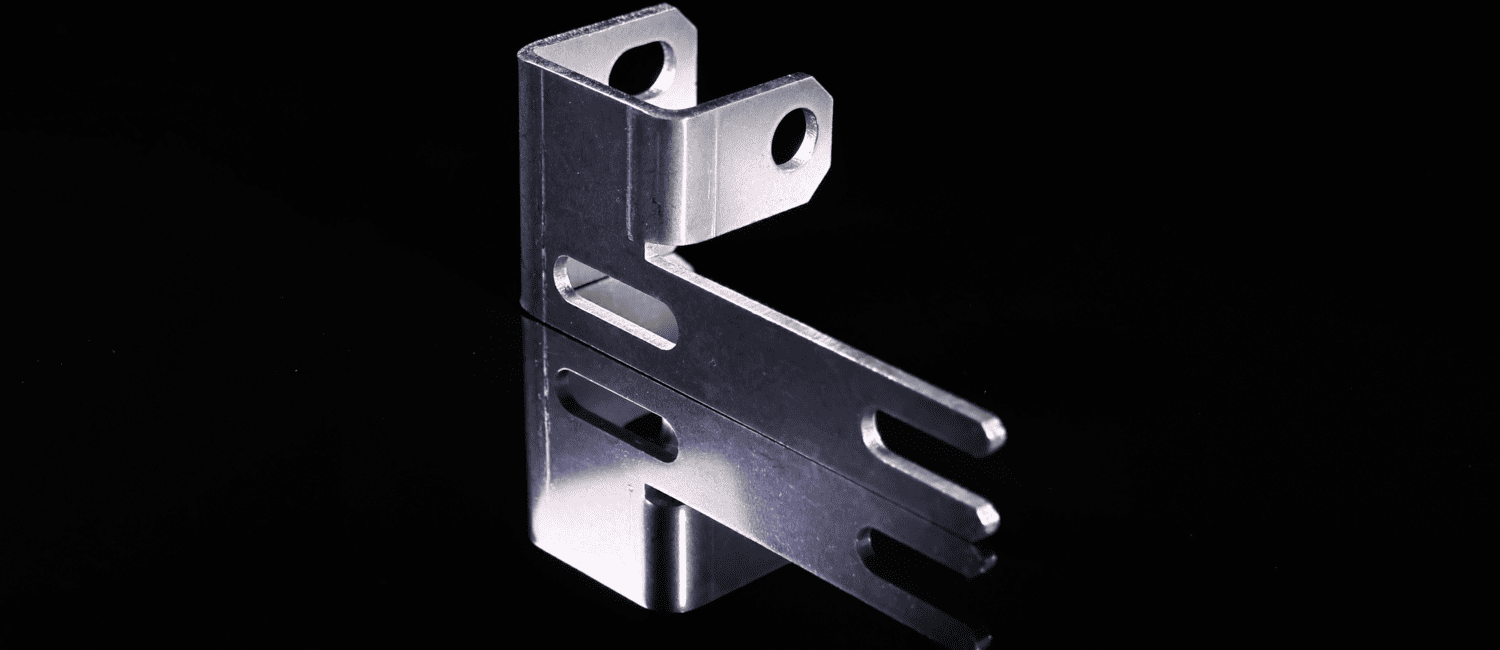

Carbon Steel Sheet Metal Parts

Carbon Steel Sheet Metal Fabrication

Carbon steel sheet metal fabrication transforms carbon steel sheets into custom components through processes such as laser cutting, metal bending, and welding. Known for its high strength, good formability, and cost-effectiveness, carbon steel is widely used to manufacture brackets, panels, enclosures, frames, and structural components.

Advantages of Carbon Steel Sheet Metal Fabrication

High Strength
Cost-Effective
Good Formability
Good Weldability
Good Ductility
Versatile Applications

Available Carbon Steel Types

Carbon Steel 1008

Carbon Steel 1008, also known as AISI 1008 or SAE 1008, is a low-carbon steel known for its excellent formability, good weldability, and relatively low strength compared with higher-carbon steels. Its low carbon content allows it to be readily cut, bent, stamped, deep drawn, and formed into a wide range of sheet metal shapes.

Key Mechanical Properties

440MPa
Tensile Strength
126 HB
Hardness
15%
Elongation at Break

Recommended Applications

Shields
Body Panels
Housings
Electrical Cabinets
Ductwork
Stamped Components

LEARN MORE >>

Carbon Steel 1018

Carbon Steel 1018, also known as AISI 1018, SAE 1018, or UNS G10180, is a low-carbon steel known for its good weldability, relatively good machinability, and ability to gain strength through cold working. It is widely available in sheet, strip, bar, and other forms and can be used for sheet metal fabrication when a balance of formability, strength, weldability, and cost is required.

Key Mechanical Properties

370MPa
Tensile Strength
126 HB
Hardness
15%
Elongation at Break

Recommended Applications

Brackets
Machine Covers
Electrical Enclosures
Mounting Components
Guards
Frames

LEARN MORE >>

Carbon Steel 1045

Carbon Steel 1045, also known as AISI 1045, SAE 1045, or UNS G10450, is a medium-carbon steel known for its higher strength and hardness compared with low-carbon steels. It responds to heat treatment and can also be flame- or induction-hardened.

Key Mechanical Properties

570 to 700MPa
Tensile Strength
170 to 210 HB
Hardness
12% to 16%
Elongation at Break

Recommended Applications

Brackets
Shafts
Wear-Resistant Covers
Supports
Mounting Plates
Housings

LEARN MORE >>

Carbon Steel A36

Carbon Steel A36, also known as ASTM A36 or A36/A36M, is a carbon structural steel specification widely used for plates, shapes, and bars in welded, bolted, and general structural applications. It is known for its useful strength, good weldability, and suitability for general fabrication.

Key Mechanical Properties

400 to 550MPa
Tensile Strength
119 to 159 HB
Hardness
20%
Elongation at Break

Recommended Applications

Structural Brackets
Support Plates
Machine Bases
Protective Guards
Fixtures
Frames

LEARN MORE >>

Carbon Steel ASTM A1011

Carbon Steel ASTM A1011 refers to hot-rolled steel sheet and strip supplied in accordance with ASTM A1011/A1011M. The specification covers several categories of steel, including commercial steel, drawing steel, structural steel, high-strength low-alloy steel, high-strength low-alloy steel with improved formability, and ultra-high-strength steel.
